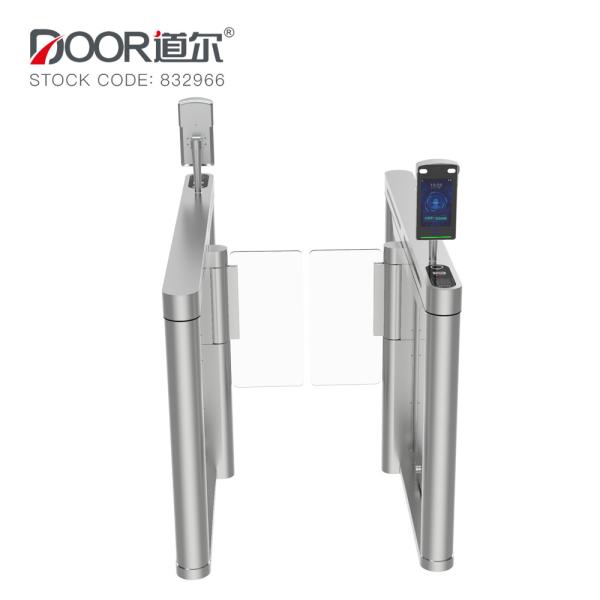

Slim Model Face Recognition Speed Gate Turnstile

Name: Slim Model Face Recognition Speed Gate Turnstile
Brand: DOOR
Price: 1 USD

Wholesale Slim Model Face Recognition Speed Gate Turnstile from china suppliers

Brand Name : DOOR

Model Number : DR.TD.6623

Certification : CE / IS09001

Place of Origin : China

MOQ : 1 lane

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 2500 sets per month

Delivery Time : 5-7 working days

Packaging Details : wood carton

Material : 304# stainless steel

Size : L1600×W160×H1030mm

Power supply : AC110/AC220+/-10%

Weight : 80kg

Channel Width : 550mm-1100mm

Working environment : Indoor

Color : Silver

Communication interface : RS485,dry contact

Contact Now

slim model face recognition speed gate turnstile

Device Parameter:

Structure Parameter

Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm, Acrylic Arm
Size: L1600*W160*H1030mm

Technical Parameter

Passage Width	standard 550mm, max 1100mm
Passing Speed	35-40 personal/min
Opening Speed	Adjustable, fastest 0.3s
Working Temperature	-25℃-+70℃
Mean Cycles Between Failure	5 million times
IP Rating	IP42

Electric Parameter

1.Voltage: AC110V/AC220V±10% 50-60Hz

2.Operating Power: Single Core 100w, dual core 200w

3.Driving Motor: Servo motor

4.Method of Position: Use the encoder to make sure the swing gate position

5.Communication Interface: RS485, TCP/IP interface

6.Input Signal: dry contact signal or +12V level signal or DC 12V

7.pulse signal with width of more than 100ms, driving current >10mA

8.Number of Sensor: 8 groups

This slim speed gate turnstile project cases:

FAQ:

What is the strength of your company in this industry?

Established in 2011, having over 10-year manufacturer experience.
Having metal sheet factory, assembly factory and office over 10,000㎡, can cover a high volume production.
There is an over 200-person R&D team, including pedestrian turnstiles and parking software and firmware developing, structuring and testing person.
Listed company, have a high and strict process of orders, production and shipping.
Modern machinery for production, such as Laser Cutting Machine, Grooving, bending, welding, engraving,etc. More detailed pics can check our factory info.

Product Tags:

Face Recognition Speed Gate Turnstile

550mm Channel Speed Gate Turnstile

35person/min Stainless Steel Turnstile
